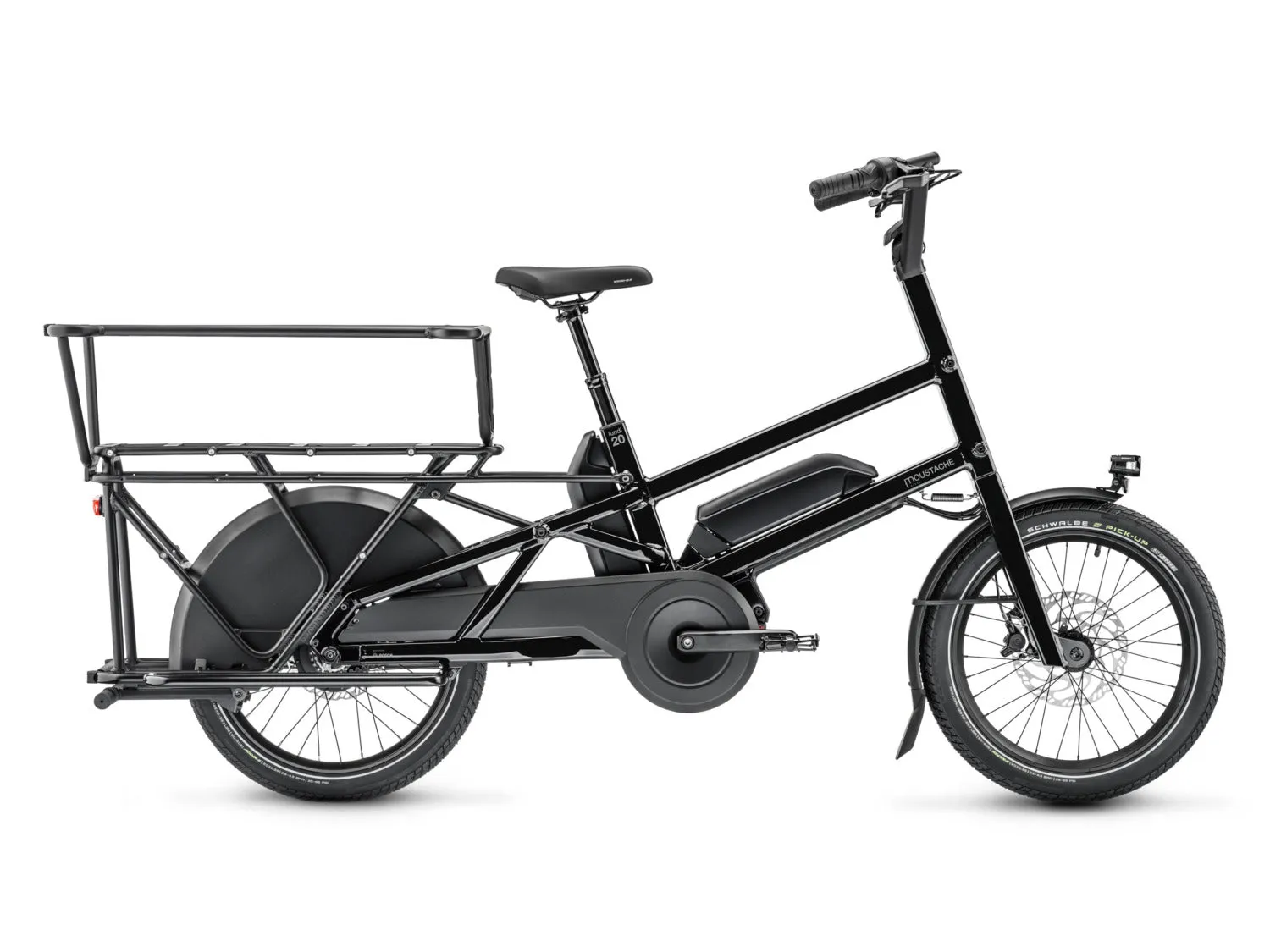

The new Lundi 20.5 is equipped with its double battery gives you a total capacity of 1000 Wh, so there’s no need to hesitate: you’ll be able to do a tour of the town 3 times over if you wish and keep on riding without counting the kilometres. You’ll even be able to go an entire week without recharging the batteries, why not?

The very intuitive Enviolo system will enable you to easily change gears with a simple turn of the wrist, whether you are pedalling or not.
The Gates belt drive guarantees minimal care is needed and a lifetime that’s…maximum. It is also totally integrated for improved safety.

With its new longtail frame designed to guarantee you a large load capacity at the front and the rear, you will be able to safely transport your children or your belongings, well held in place thanks to the ALBERT protection bar, and easily change any accessories according to your needs.

SAFETY AND PROTECTION
• Excellent braking control thanks to Magura hydraulic disc brakes and specific E-Bike discs that ensure better heat evacuation.
• Powerful lights with a front directional AXA light and a rear light offering increased brightness during strong braking.
• Integrated monobloc wheel guard, that’s strong and long lasting to protect your wheels as well as your passengers’ feet.
• ALBERT aluminium protection bar, fixed on the luggage carrier and enabling you to safely carry 2 children or large loads. Rounded edges are designed to protect yours passengers.


PRACTICAL AND MODULAR
• Extra-large aluminium Moustache luggage carriers, demountable side supports for QL3 bags.
• ALBERT protection bar that’s compatible with numerous accessories.
• Luggage carrier with the MIK HD system to fix multiple compatible accessories, baskets and baby carriers in one click.
• Optional front luggage carrier with MIK platform available in the accessories range.


TRANSMISSION
• Enviolo system with Heavy Duty continuously variable hub, 380 % ratio range, cargo-specific. Very intuitive and easy to use, changing gear is possible even when loaded or without pedalling, reduced maintenance.
• Twist grip handle mounted on ball bearings for ease of use and effortless gear changing.
• Gates belt drive, clean, fluid and strong. Reduced maintenance.

NEW LONGTAIL FRAME
• Aeronautical quality aluminum frame, ultra-stiff, with optional front luggage carrier mounts. Specific Lundi 20 aluminum fork. Reinforced rear enabling a total charge of up to 70 kg.
• Balanced geometry and lowered center of gravity to offer an easy and safe ride feeling and excellent maneuverability at low speeds.
• Rear central kickstand with a wide support for better stability when you are loading or unloading the bike.

EPOWERED BY BOSCH
• Ebike system is the Bosch Cargo Line system, light, dynamic, increased torque even at low pedalling frequencies for better momentum when pulling away and accelerating. 250W nominal power, torque up to 85 Nm. Assistance of up to 400 %.
• Using the Bosch DualBattery, 2 xPowerPack 500Wh. Total capacity of 1000Wh. Estimate your autonomy
• The display is the Bosch Intuvia central console with offset controls, simple and intuitive, touchscreen, micro-USB socket – 5 assistance modes.
• Walk function offers assistance of up to 6 km/h when walking at the side of your bike.

LET’S ROLL!
• 20″ wheels with asymmetric aluminum rims, for an agile and precise ride.
• Schwalbe Pick-Up 20×2.35 cargo specific tires, supporting heavy loads of up to 125 kg per tire.
• As comfortable as they are strong, their large volume will prevent you from trapping your wheels in tram rails.

SPECIFICATIONS:
FRAME/FORK/MOTOR/BATTERY:
Model : Lundi 20.5 DUAL

Frame : Lundi 20 mid step-over, 6061 T4-T6 alloy, hydroformed and extruded triple cavity tubes for optimal stiffness. Integrated cable routing. Optimal geometry for stable handling and great manoeuvrability. Mounting points for optional front carrier

Fork : Lundi, alloy w/integrated cable routing

Motor : Bosch, Cargo Line – 250W nominal power, max 600W, 85Nm – Assistance up to 400 % – Powerful – Natural – Quiet – Frictionless – Compact – Lightweight

Battery : Bosch, DualBattery, 2 x PowerPack 500Wh. Total: 1000Wh

Charger : Bosch, Fast Charger 6Ah, 3h half charge, 5h40 full charge

Display : Bosch, Intuvia central mount with separate control unit – 5 modes (Eco, Tour, Sport, Turbo, Off)

DRIVETRAIN/BRAKES:
Drivetrain : Enviolo, Heavy Duty hub, continuously variable transmission, 380% range, heavy duty compatible

Front cog / Chainring : Gates, 55T

Sprocket : Gates, 22T

belt : Gates, CDX belt, clean, smooth and resistant

Shifters : Enviolo, PRO, w/ user-friendly display, smooth operating ball bearings actuation

Crankset : Moustache, alloy, 170mm

Brakes : Magura, MT4, hydraulic disc brakes

Rotors Front/Rear (in mm) : Magura, MDR-C, e-bike specific, 203mm front and 180mm rear, for better heat dissipation and braking control

WHEELS/TYRES:
Hubs : Front: Moustache, 32H, 15x110mm, Boost / Rear: Enviolo, Heavy Duty, 32H, 12x148mm, Boost

Rims : Moustache, asymmetric 20″, alloy 6061E, welded, 32 holes, internal width 23mm

Tires : Schwalbe, Pick-Up, 20×2.35, heavy load compatible, up to 125kg per tire, Super Defense puncture protection

OTHER COMPONENTS:
Saddle : Selle Royal, Essenza Moderate

Seatpost : Moustache, suspension dropper, alloy 34.9mm, 100mm drop, 40mm travel, comfort and security

Seat clamp : Moustache, key tightening

Handlebar : Moustache, Lundi custom ergonomic, alloy

Headset : FSA, No 28/41 integrated

Grips : Ergonomic, dual-density

Headlight : AXA, Blueline, 30 lux, powered by main battery

Taillight : AXA, Duo Flat Signal, increased brightness under deceleration, powered by main battery

Kickstand : Moustache, central rear, wide stance for better stability

Mudguards : Front: Moustache, alloy, double wall design, w/alloy stays and mudflap / Rear: PP, 180° lateral protection

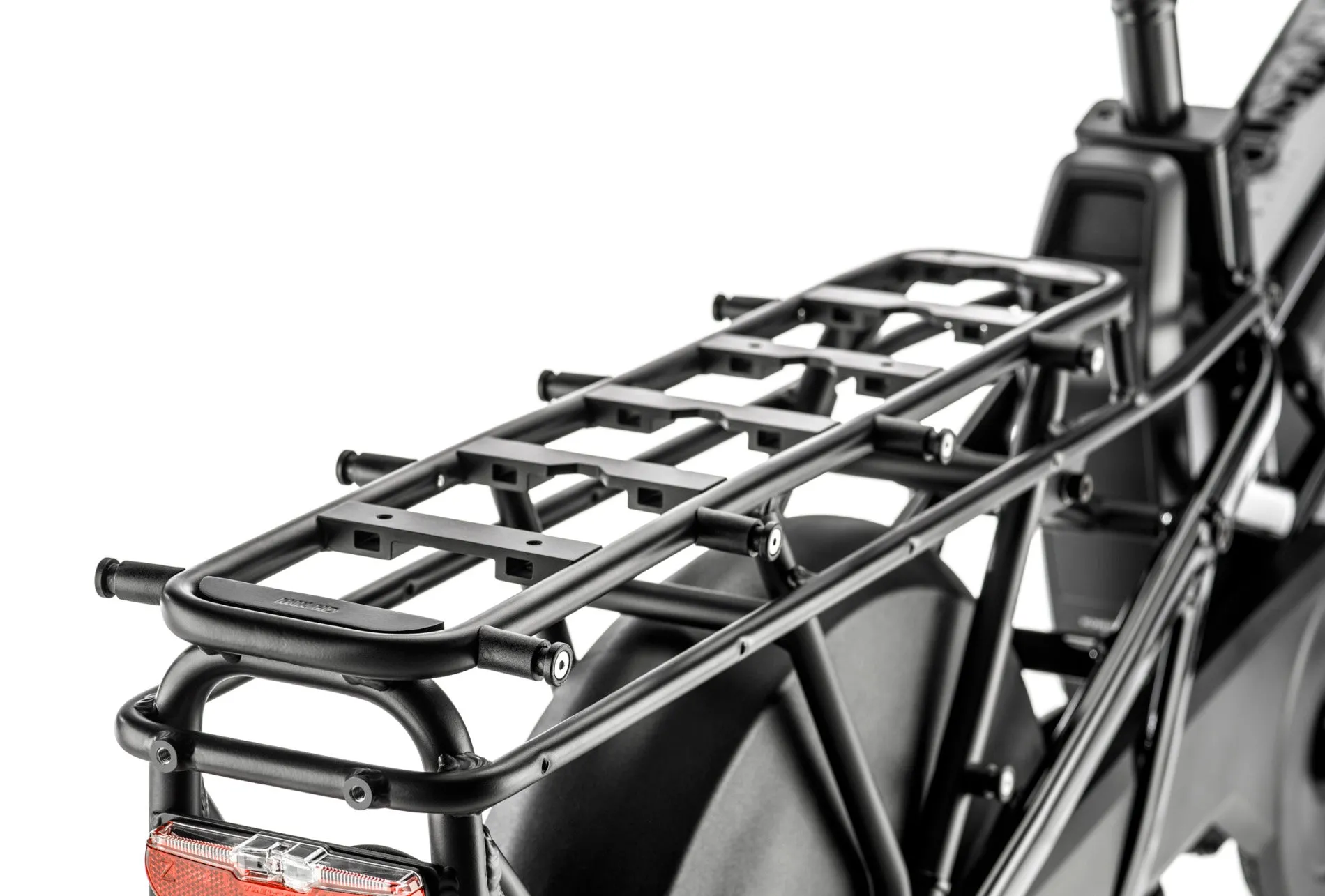

Rear carrier : Moustache, alloy, exclusive longtail design w/ integrated footrests. Removable side fastenings for QL3 luggage. Platform with multiple MIK HD 27kg system to rapidly attach all compatible accessories, bags and child seats. ALBERT protection bar for children safety (recommended height between 110-140cm. Smaller children require adapted baby seats)

Front carrier : Optional extra: Moustache, alloy, compatible with MIK baskets and accessories. Available in 2 sizes

Pedals : Wide platform, anti-slip, alloy with reflectors

Warranty : 5 years frame and Moustache Bikes fork – 2 years motor, battery (or 500 cycles) and accessories

Sizes : One size fits all (size 39, suitable for approximately a 1,55m to 1,90m rider)

Color : Black, glossy


PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
